HLD-8W
HUALIANDA
| Quantity: | |
|---|---|
Product Description
Features: |
1. ChainStitch Multi Needle Quilting Machine，themaximum speed reaches 1500RPM,which is one of thefastest models in the global industry.
2. In order to make computerized multi-needlequilting machine more stable and less vibrating whenrunning at high speed, the weight of the wholemachine reaches 6.5 tons, which is 12% more than thesame type of products.
3. Computerized multi-needle quilting machine adoptsa 35mm diameter spindle and a 40mm diameter beamshaft; the needle bar shaft and the pressure rodshaft are about 16.7% and 12.5%larger than thesame type of products.
4. The spindle bearing adopts Japanese NSK brand orequivalent brand, and uses Taiwan Hiwin guide rail.
5. CNC adjustment of the pressure plate height.
6. The system data can be connected to the user sproduction management system.
7. Remote maintenance and remote operation arepossible.
8. Core parts servicelife reminder function andequipment maintenancereminder function.
Technical Parameter: |
Model | HLD-8W |
Dimension(L*W*H) | 7000*4960*2520mm |
Power | 12KW |
Gross weight | 6500kg |
Host speed | 600-1500 |
Production speed | 80-360m/h |
Main shaft speed | 1500prm |
Stitch length | 3-8mm |
Quilting width | 2450mm |
Quilting thickness | ≤80mm |
Needle type | 24/180,23/160,22/140,21/130 |
Voltage | 380v/220v 50hz /60hz 3 phase |
Space between needles | 12.7/25.4mm |
Space between needle rows | (50.8,76.2,127)5’’ （76.2,76.2,152.4）6’’ |
Max horizonal movement | 304.8mm |
Installation Layout: |

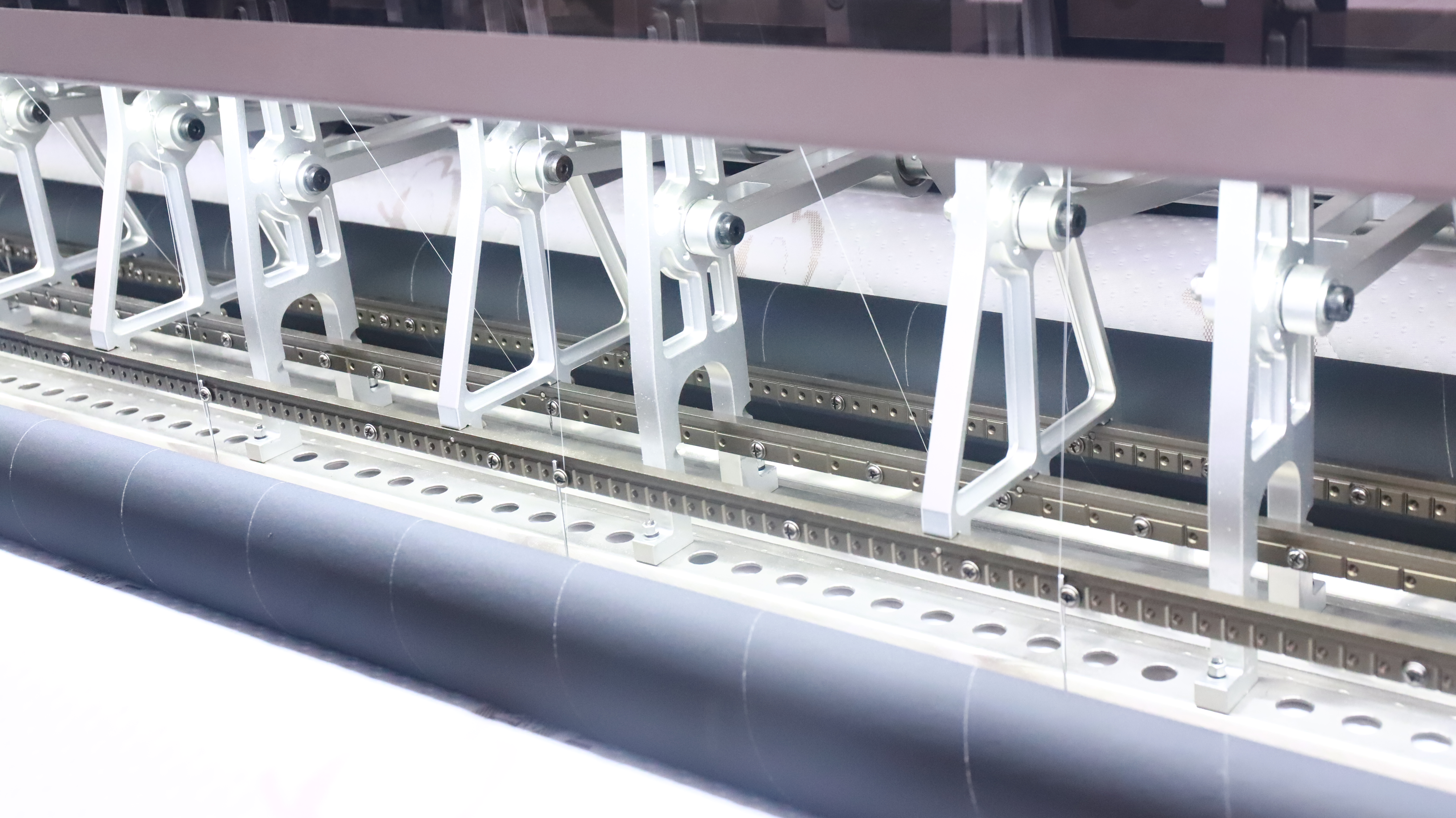

Product Display: |
Design: |
Loaded Container: |
